[R] Tree-Based Methods : Bagging

1. Ensemble methods

• An ensemble methods is an approach that combines many simple building ensemble block models in order to obtain a single and potentially very powerful model.
• These simple building block models are sometimes known as weak learners.
• Methods
  • Bagging
  • Random Forest
  • Boosting
  • Bayesian additive regression trees



2. Bagging

2.1 Boostrap methods

1. Referring (\(X_1, ..., X_n\)) as population, sample n with replacement.
2. Iterating n times : making n Bootstrap sets
   1. Calculating statistics from sampled sets (\(\hat{X_1}, ..., \hat{X_n}\))
   2. Calculating aggregated statistics from Bootstrap sets



# Population of training set
seq(20)

# Boostrap set
sort(sample(seq(20), 20))



2.2 Bagging Tree methods

• Bootstrap aggregation, or bagging, is a general-purpose procedure for reducing the variance of a statistical learning method.
• Repeat calculating statistical with every sampled sets : \(\frac{1}{B}\sum_{i=1}^{B} \bar{X_i}\)
• Taking repeated samples from the training set.
• Generate B different bootstrapped training data sets : \(\hat{f}_{bag}(x) = \frac{1}{B}\sum_{b=1}^B \hat{f}^b(x)\)
• For classification trees : for each test observation, we record the class predicted by each of the B trees, and take a majority vote : the overall prediction is the most commonly occuring class among the B predictions.



3. Building Bagging Decision Tree

# Separate training and test sets
set.seed(123)
train <- sample(1:nrow(Heart), nrow(Heart)/2)
test <- setdiff(1:nrow(Heart), train)

# Classification error rate for single tree
heart.tran <- tree(AHD ~., subset=train, Heart)
heart.pred <- predict(heart.tran, Heart[test, ], type="class")
tree.err <- mean(Heart$AHD[test]!=heart.pred)
tree.err

# Bagging
set.seed(12345)
B <- 500
n <- nrow(Heart)
Vote <- rep(0, length(test))
bag.err <- NULL

for (i in 1:B) {
    # Bootstrap training set
    index <- sample(train, replace=TRUE)
    heart.tran <- tree(AHD ~., Heart[index,])
    heart.pred <- predict(heart.tran, Heart[test, ], type="class")
    Vote[heart.pred=="Yes"] <- Vote[heart.pred=="Yes"] + 1
    preds <- rep("Yes", length(test))
    # Decide as "No" when the number of voted case is lower than i/2
    # Apply majority rules
    preds[Vote < i/2] <- "No"
    bag.err[i] <- mean(Heart$AHD[test]!=preds)
}

# Visualize bagging decision tree
plot(bag.err, type="l", xlab="Number of Trees", col=1, ylab="Classification Error Rate")
abline(h=tree.err, lty=2, col=2)
legend("topright", c("Single tree", "Bagging"), col=c(2,1), lty=c(2,1))





• Missclassification rate converges to 0.23xxx



4. Out-of-Bag Error Estimation

• The key to bagging is that trees are repeatedly fit to bootstrapped subsets of the observations.
• One can show that on average, each bagged tree makes use of around two-thirds of the observations.
• The remaining one-third of the observations not used to fit a given bagged tree are referred to as out-of-bag(OOB) observations.
• We can predict the response for the \(i\)th observations using each of the trees in which that observation was OOB. This will yield around \(\frac{B}{3}\) predictions for the \(i\)th observation on average.



4.1 [Ex] Average of missclassification rate of single tree

# Average of missclassification rate of single tree
# Over 50 replications
set.seed(12345)
K <- 50
Err <- NULL

for (i in 1:K) {
  train <- sample(1:nrow(Heart), nrow(Heart)*2/3)
  test <- setdiff(1:nrow(Heart), train)
  heart.tran <- tree(AHD ~., subset=train, Heart)
  heart.pred <- predict(heart.tran, Heart[test, ], type="class")
  Err[i] <- mean(Heart$AHD[test]!=heart.pred)
}
summary(Err)
Tree.Err <- mean(Err)



Min	1st	Median	Mean	3rd	Max
0.1616	0.2121	0.2424	0.2473	0.2727	0.3333



• Over 50 replications, the mean of missclassification rates is 0.2424.



4.1 [Ex] Out-of-Bagging missclassification rate

# OOB
set.seed(1234)
Valid <- Vote <- Mis <- rep(0, nrow(Heart))
OOB.err <- NULL

for (i in 1:B) {
  # Bootstrapping from Heart index
  index <- sample(1:nrow(Heart), replace=TRUE)
  # Extract test index from boostrapped index
  test <- setdiff(1:nrow(Heart), unique(index))
  Valid[test] <- Valid[test] + 1
  # Train model with bootstrapped training sample
  heart.tran <- tree(AHD ~., Heart[index,])
  # Make predictions of test sets
  heart.pred <- predict(heart.tran, Heart[test,], type="class")
  Vote[test] <- Vote[test] + (heart.pred=="Yes")
  # Vote for test sets
  preds <- rep("Yes", length(test))
  preds[Vote[test]/Valid[test] < 0.5] <- "No"
  # Find index of misscalssified case
  wh <- which(Heart$AHD[test]!=preds)
  Mis[test[wh]] <- -1
  Mis[test[-wh]] <- 1
  OOB.err[i] <- sum(Mis==-1)/sum(Mis!=0)
}

# View statistical reports of error
summary(OOB.err)
summary(OOB.err[-c(1:100)])

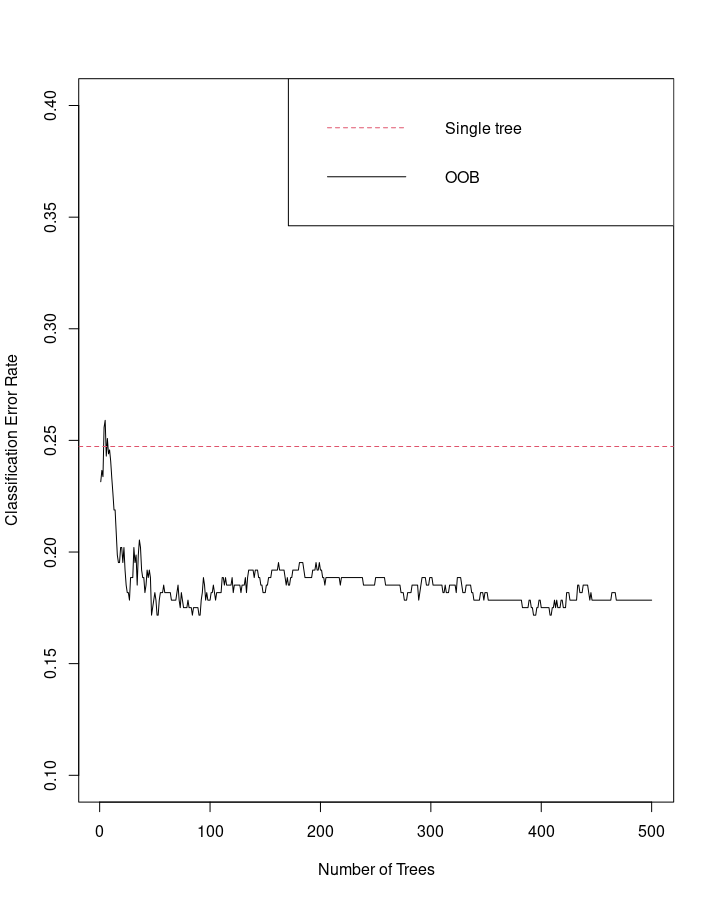

# Visualize results
plot(OOB.err, type="l", xlab="Number of Trees", col=1,
     ylab="Classification Error Rate", ylim=c(0.1,0.4))
abline(h=Tree.Err, lty=2, col=2)
legend("topright", c("Single tree", "OOB"), col=c(2,1), lty=c(2,1))
